Visuals and performance frequently work hand in hand in PC building and gaming. Among enthusiasts and casual consumers alike, the GPU backplate is becoming well-liked.

Though their function and worth are up for discussion, these sleek covers are sometimes found on expensive graphics cards. More producers include backplates in their designs as GPU technology develops, so they become a standard rather than an anomaly. This pattern brings up an interesting question: Do GPU backplates offer anything beyond just visual appeal?

Knowing their capabilities can assist you in determining whether buying a GPU with a backplate is justified for your build.

We will look at what GPU backplates are, their material choices, their effects on cooling, support, performance, and appearance.

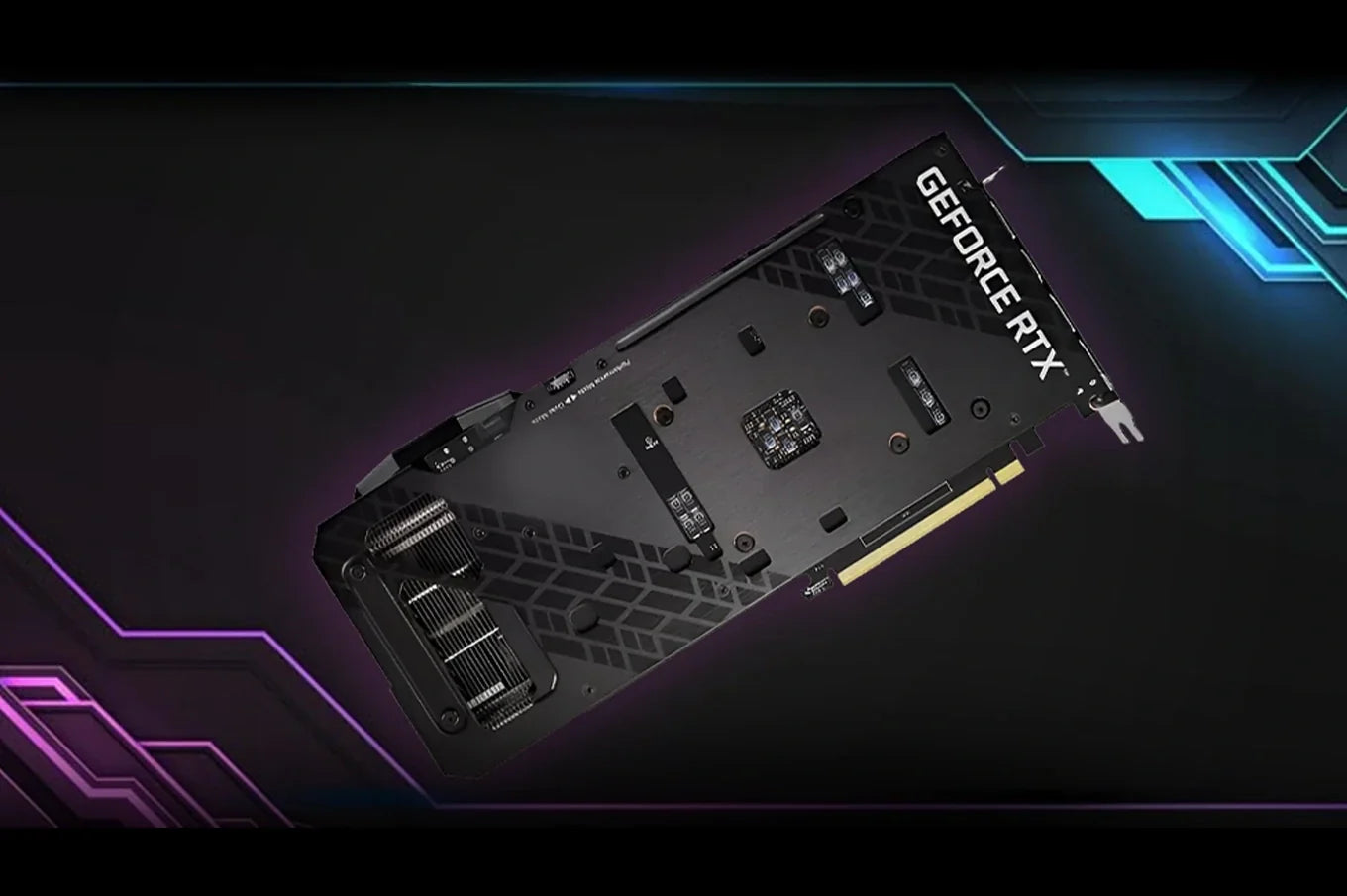

What Are GPU Backplates?

Flat panels fastened to the back of a graphics card are known as GPU backplates. They have several uses, ranging from structural support to making the card more appealing.

Material Overview

• Metal: Most often, light and great for heat dispersion is aluminium metal. For their durability and thermal conductivity, aluminium backplates are frequently employed.
• Plastic: Typically discovered on budget or OEM cards, plastic backplates cost less but are less resilient and less efficient in heat transmission.
• Acrylic: To show RGB lighting and unique designs, clear acrylic backplates are much sought after. Though less robust than metal equivalents, they are lightweight.
• Carbon fibre: Strong, lightweight features with a sophisticated aesthetic appeal. Though they can add some structural support, carbon fibre backplates are mainly for cosmetic improvement.

Purpose and Placement

Mounted straight on the reverse side of the GPU PCB, the backplate. Among its main uses are:

• Sleek finishes, logos, or RGB lighting can help to create visual appeal.
• Helping heavy, high-performance cards prevent sagging.
• Providing defence against bending, inadvertent drops, and dust.
• Maybe helping to cool passively by distributing heat over the surface.

Do GPU Backplates Provide A Cooler?

Among the most contentious subjects on backplates is their capacity to cool. Many fans wonder if these parts are mostly ornamental or if they can help maintain lower temperatures.

Passive Cooling Advantages

Metal backplates can function as heat spreaders, especially aluminium ones. Heat on the PCB is produced when the GPU runs under load. Passive cooling benefits from the ability of a metal backplate to absorb some of this heat and spread it equally over its surface.

Benchmark Insights

Overall cooling performance depends more on external variables, including case airflow, current heatsink design, and ambient temperature.

Limitations are crucial to remember that backplates are not replacements for active cooling devices, such as fans or liquid cooling systems. Their passive heat spreading capability is limited and typically inadequate for OCed or thermally taxing GPUs.

Support and Durability: Structural Advantages

Beyond their appearance, backplates are very important for preserving the physical integrity of your graphics card.

GPU Sag Prevention

Over time, heavy GPUs, particularly those with large heatsinks or several fans, tend to sag, putting strain on the PCIe slot and motherboard. A strong metal backplate can offer essential support, therefore lowering damage and preventing sagging.

Protection for PCBs and Parts

Backplates protect the PCB from mechanical strain, dust, and unintentional hits. This is particularly useful during shipping or regular rig modifications.

Increased Stiffness During Shipping Or Rig Movement

A backplate gives stiffness, therefore lowering the possibilities of PCB bending or cracking when moving your computer or changing parts.

Aesthetics and customizing

The most obvious argument for selecting a GPU backplate is its eye appeal.

Custom logos, carved patterns, or RGB lighting can be added to backplates, which come in a range of finishes including matte, gloss, and brushed metal. Particularly when combined with clear side panels, they lend your construction a sophisticated, upscale appearance.

RGB GPU Backplates

Among modders and gamers, RGB backplates are especially well-known. Built-in LEDs on these backplates may be synchronized with other parts to generate dynamic lighting effects that improve the general appearance.

Complementing Modern PC Builds

A GPU backplate is the ideal finishing touch, giving your build a polished and professional appearance, with RGB settings becoming commonplace and glass side panels.

Do GPU Backplates Justify Themselves?

Whether you consider a GPU backplate to be worth the cost depends on your particular build objectives and needs.

Functional Versus Aesthetics

• Functional Advantages: Support, slight cooling improvements, and defense are among the functional advantages.
• Aesthetic Advantages: Customization, RGB lighting, and visual appeal.

Do All GPUs Need Them?

Low-end GPUs typically lack backplates or include ones that are purely decorative. In contrast, high-end and heavier GPUs benefit the most from backplates due to the added support and durability they provide.

Final Decision

GPU backplates offer both form and function. While their cooling benefits may be modest, they help reduce GPU sag, protect sensitive components, and enhance passive heat dissipation. Visually, they elevate your build, especially with RGB lighting in modern glass-panel cases.

Whether you're aiming for extra support with a heavy GPU or building a showcase-worthy gaming rig, a backplate can be a smart addition.

Ready to build a gaming PC tailored to your needs?

Visit TechnoidGamingPC and let’s bring your dream setup to life!

Mostly Asked Questions

Q1: Are backplates standard on all GPU models?

No, many budget or entry-level GPUs do not feature backplates. High-end cars have them more commonly.

Q2: Can I add a backplate to my already installed GPU?

Yes, frequently with some DIY effort, aftermarket backplates are available and can be installed on compatible GPUs.

Q3: Do RGB backplates need more electricity?

RGB backplates often need power, usually through an RGB header or a fan, to activate illumination effects.

Q4: Are plastic backplates preferable to metal?

Yes. Compared to plastic ones, metal backplates offer better durability, heat dissipation, and support.
